Ducati front sprocket retaining clip sprocket wheel holder spacer repair kit 82610111A

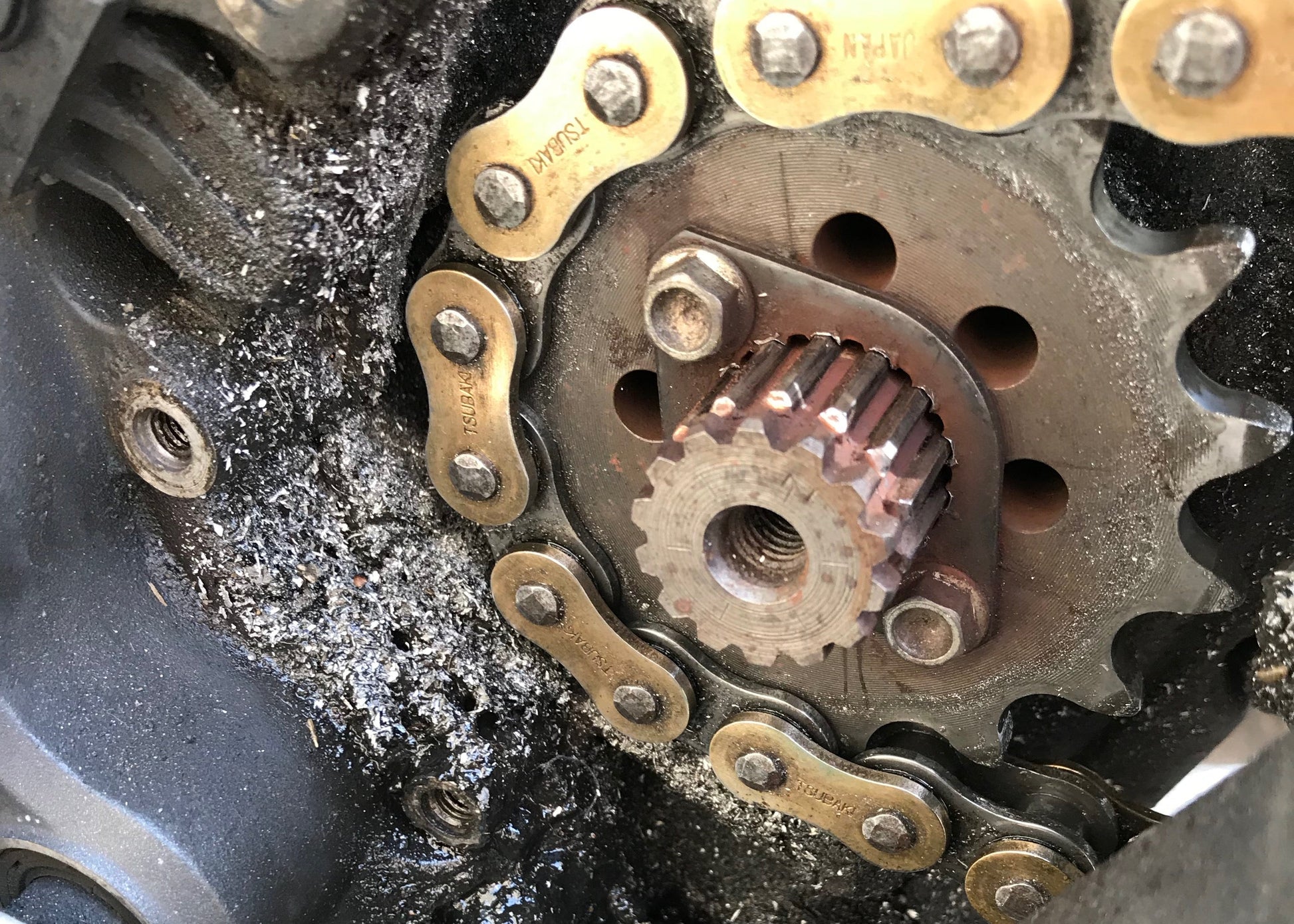

Repair kit for retaining front spoket wheel.

Repair kit contents

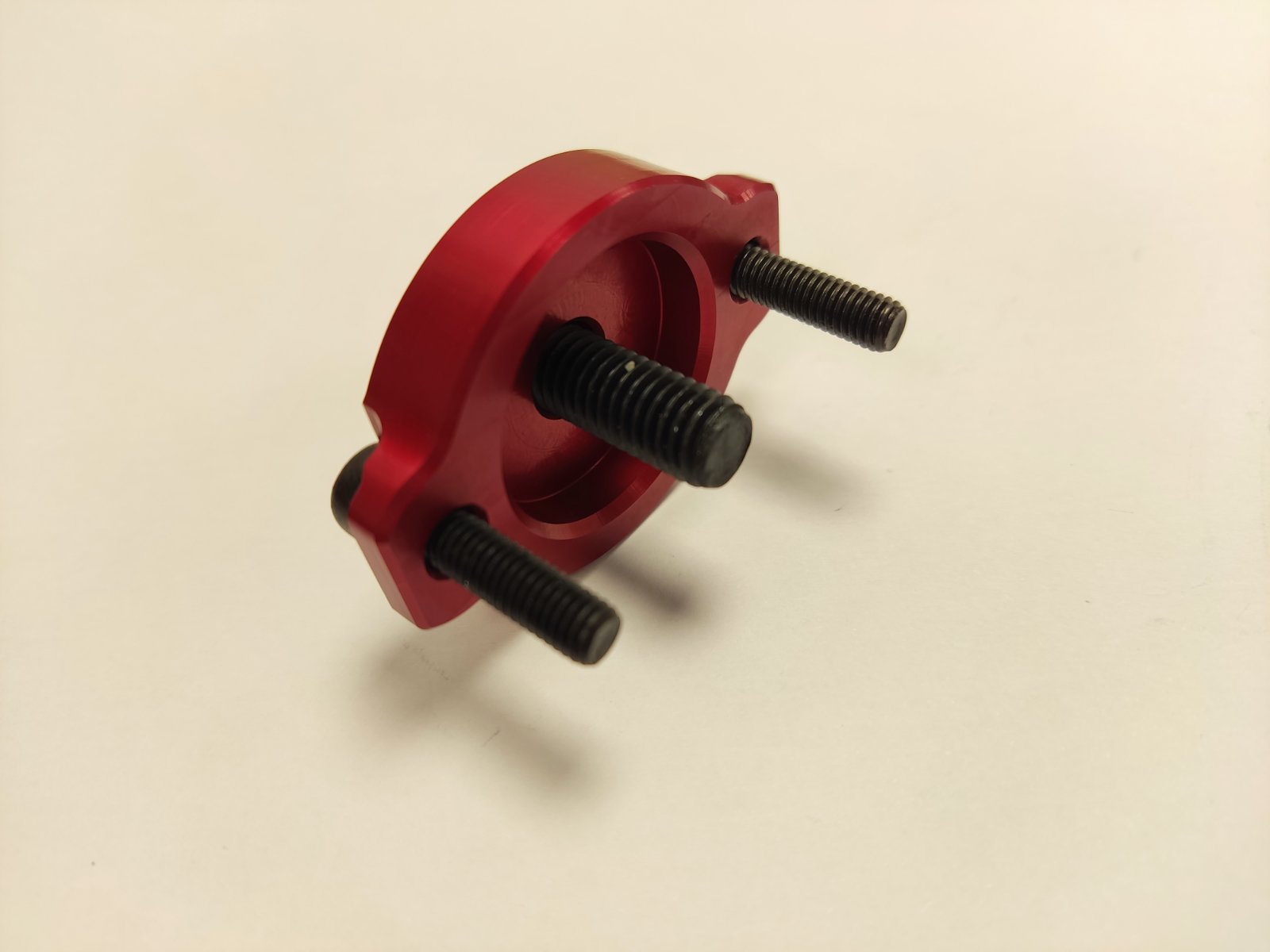

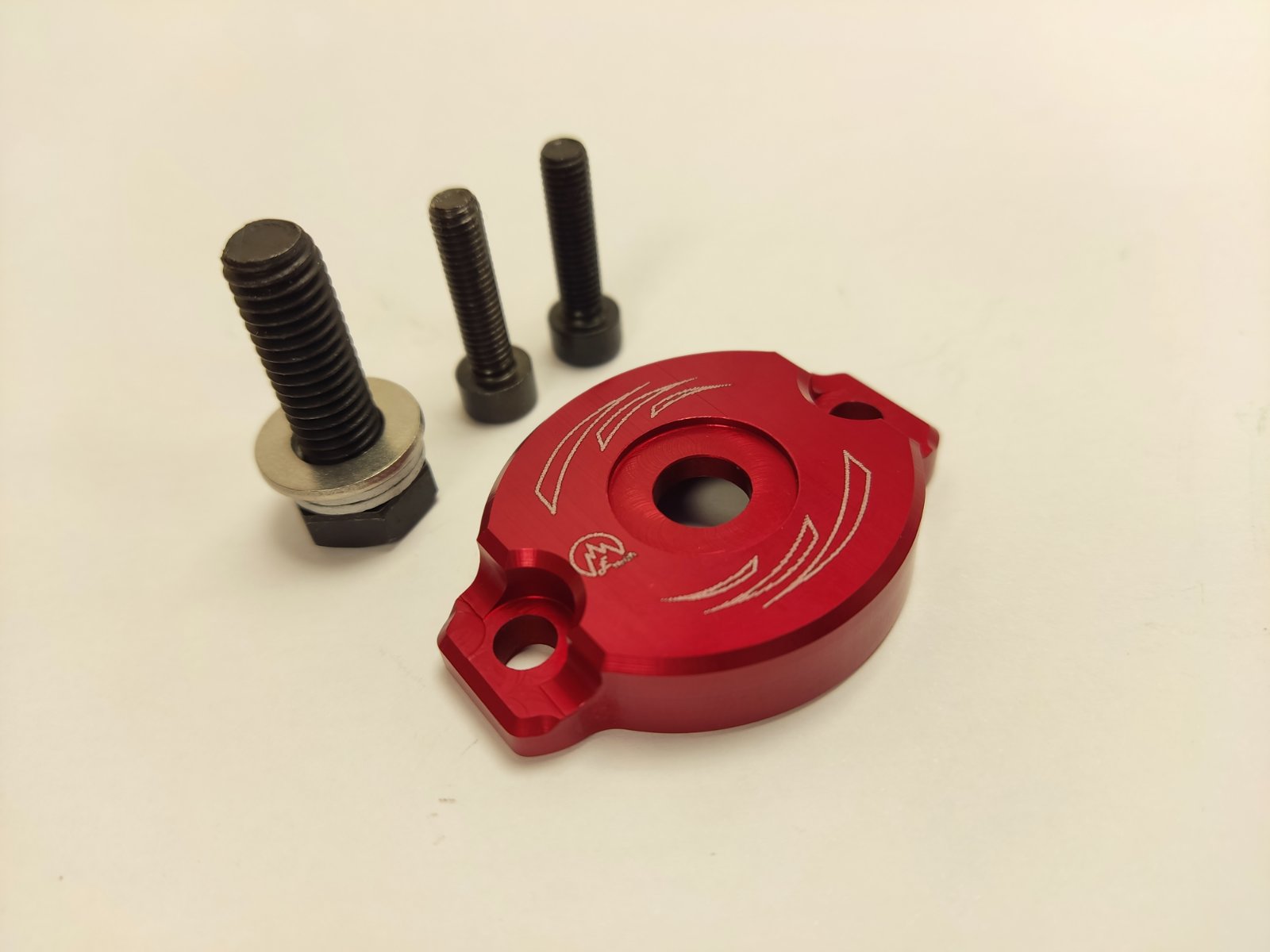

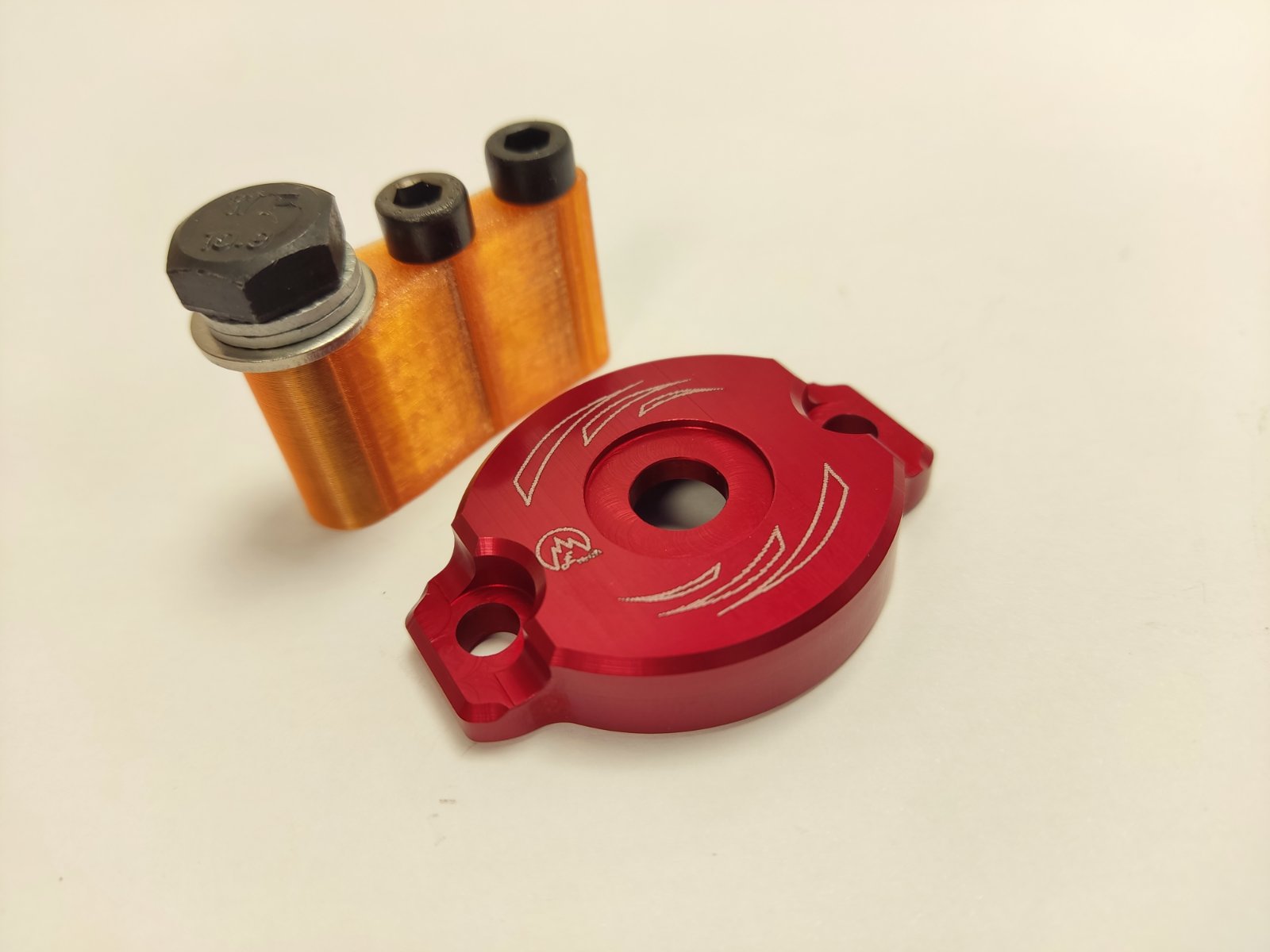

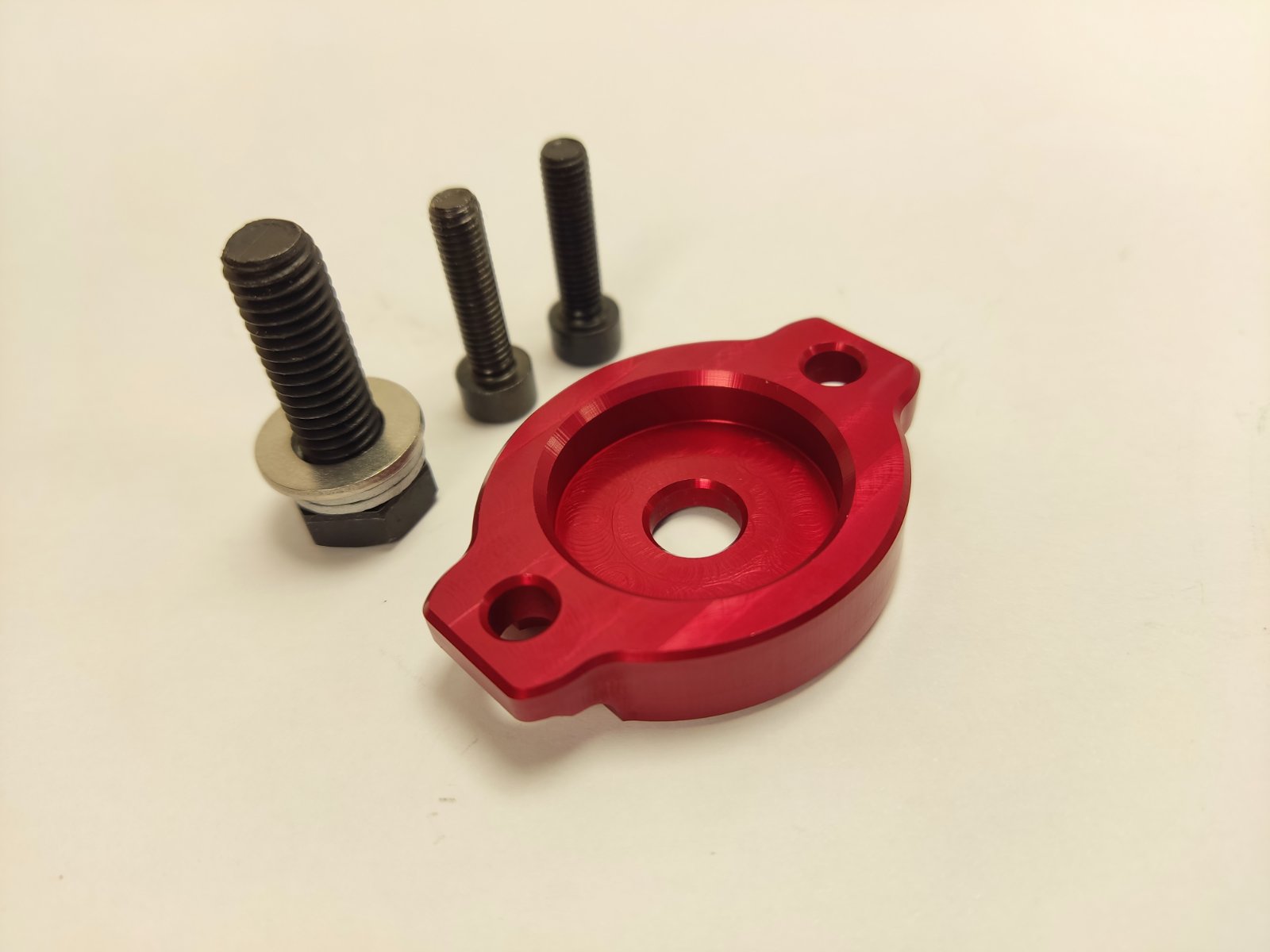

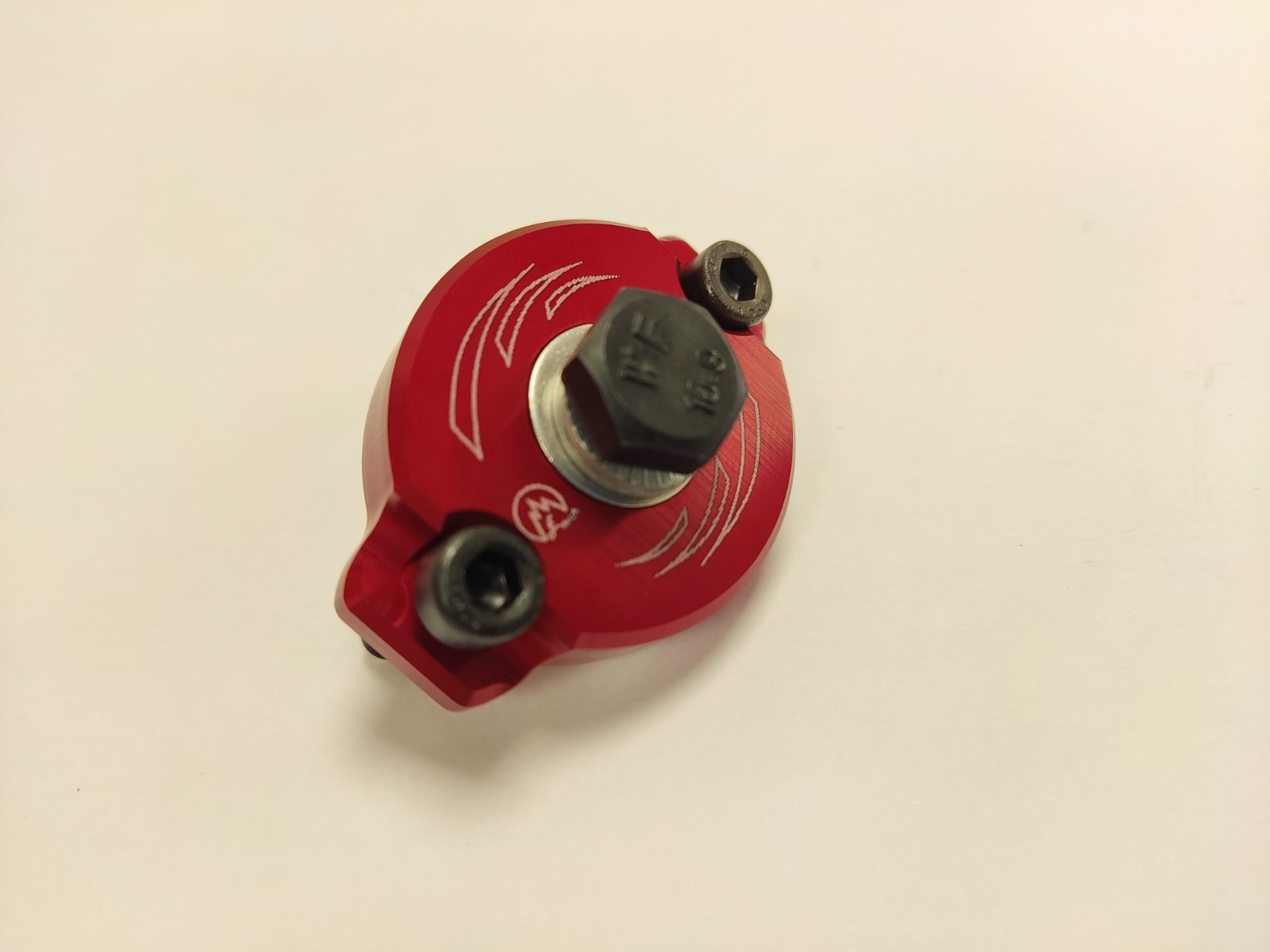

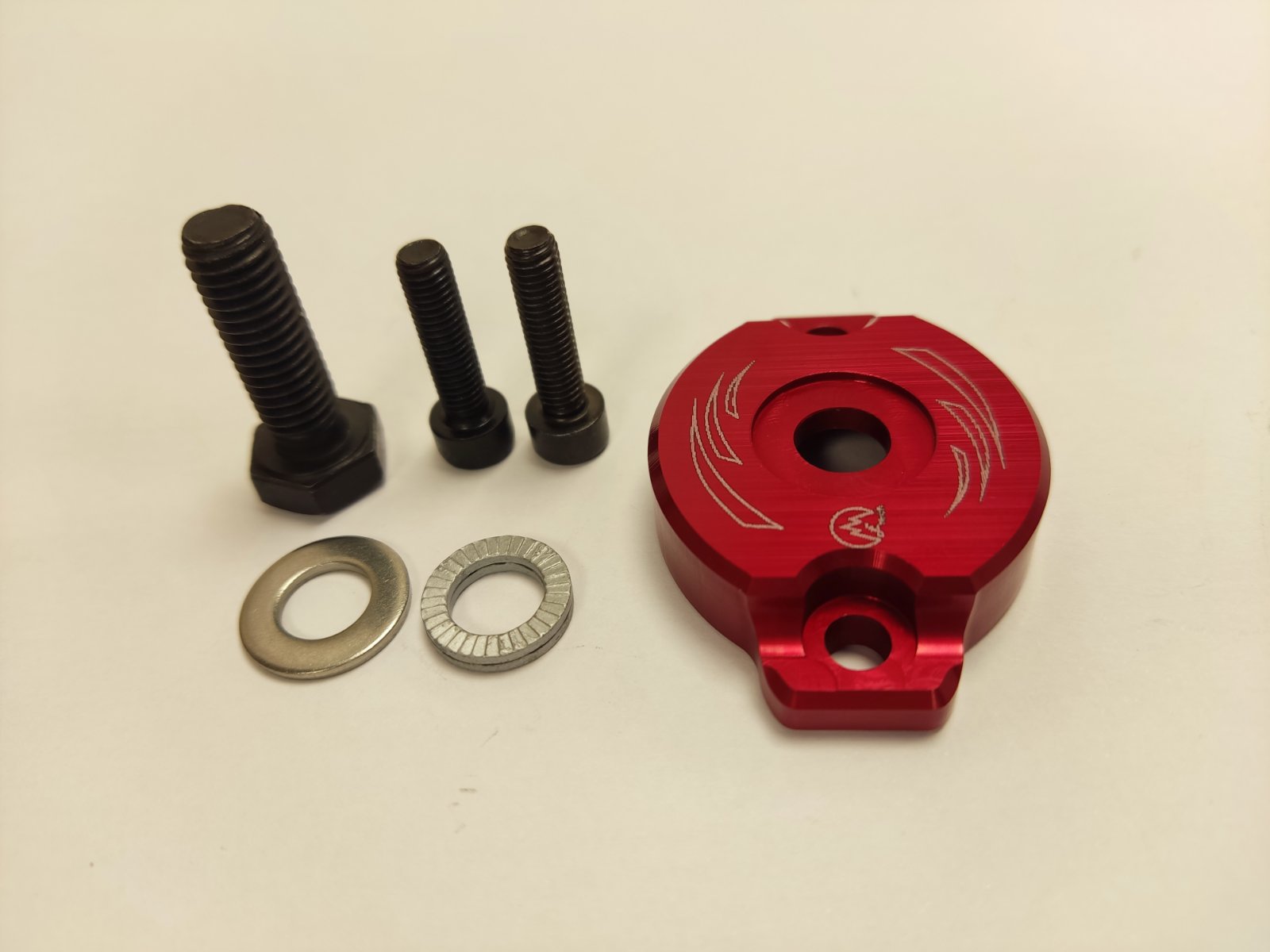

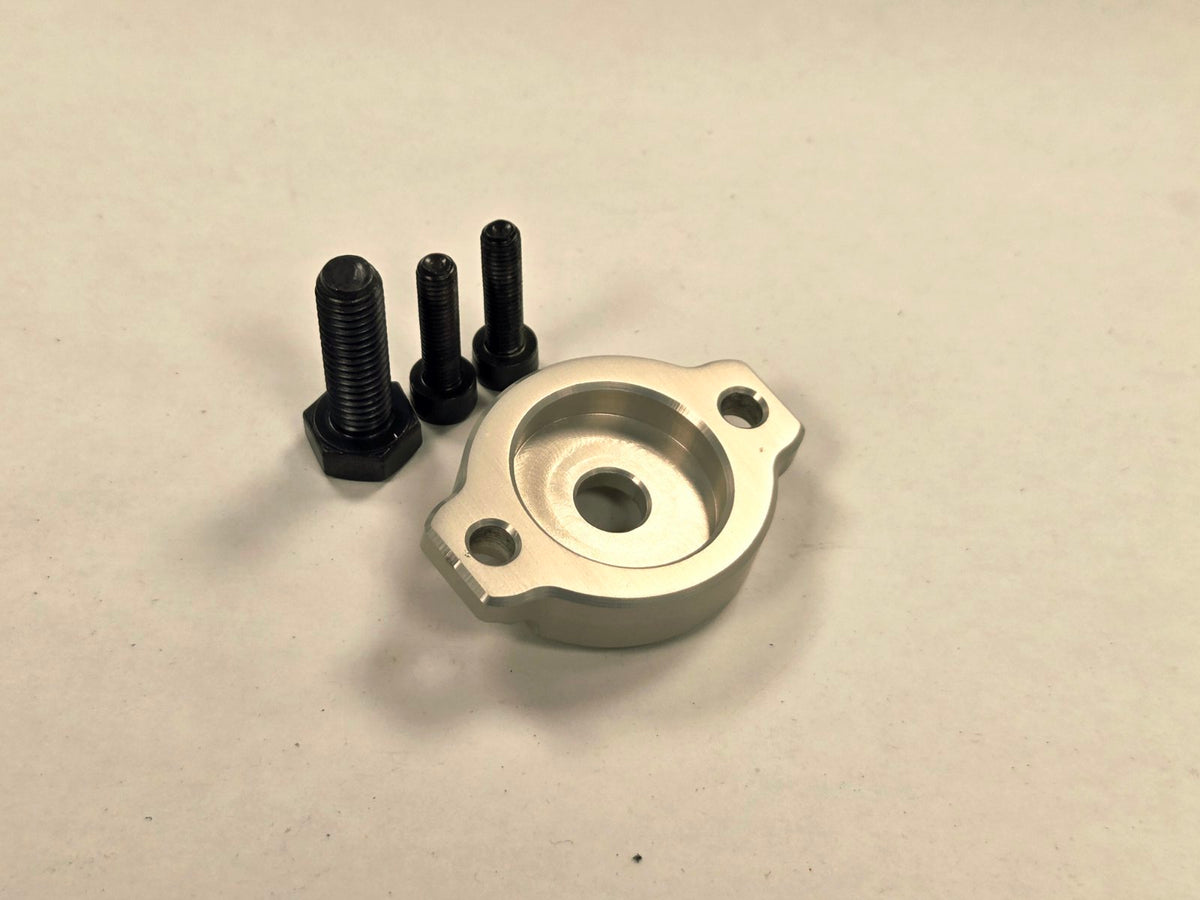

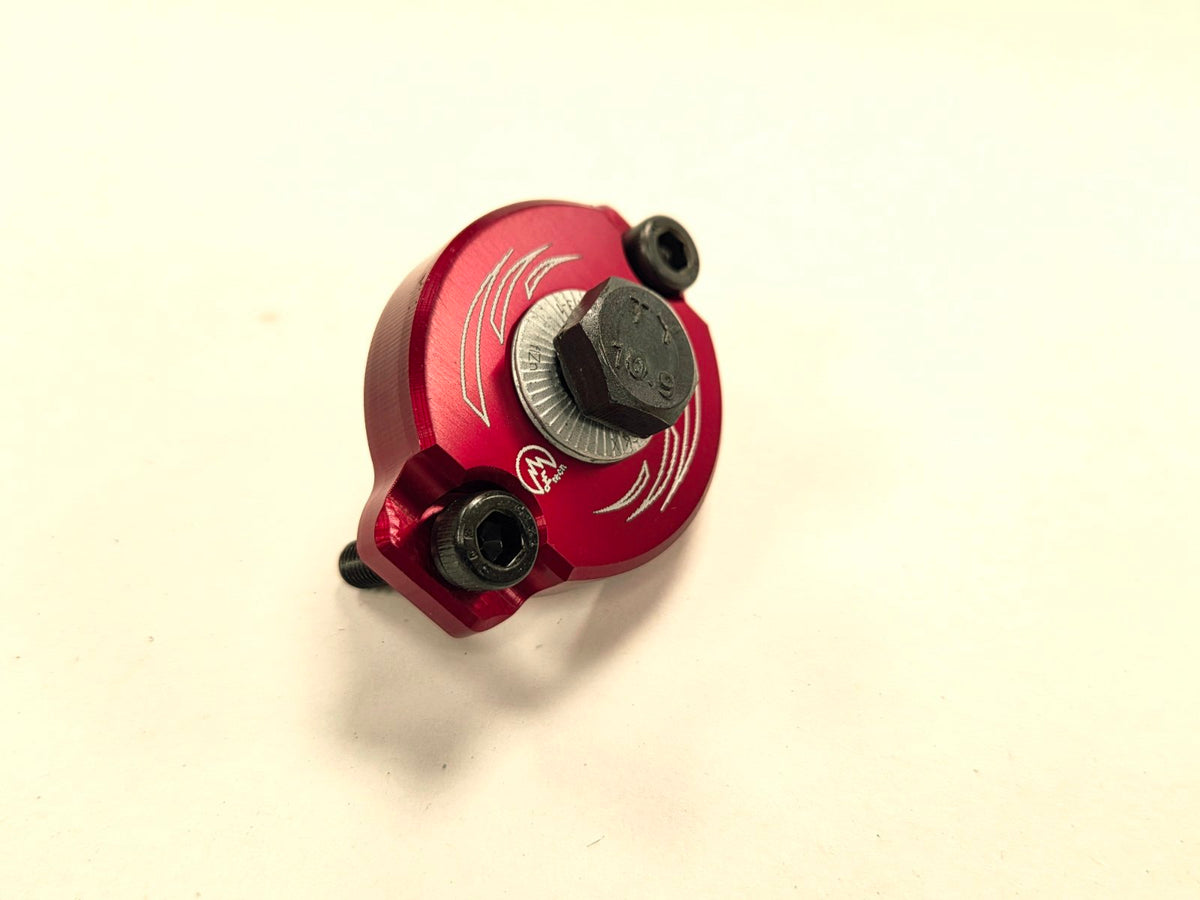

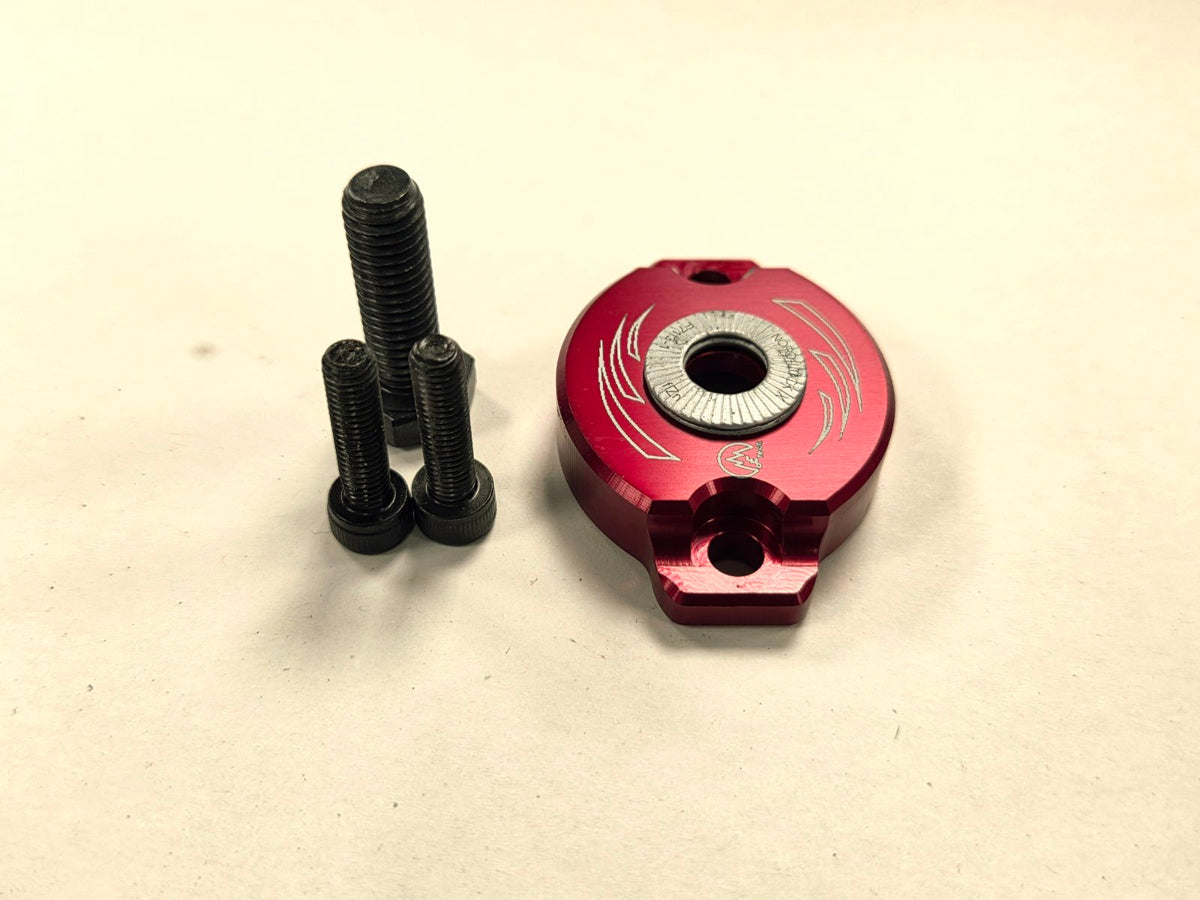

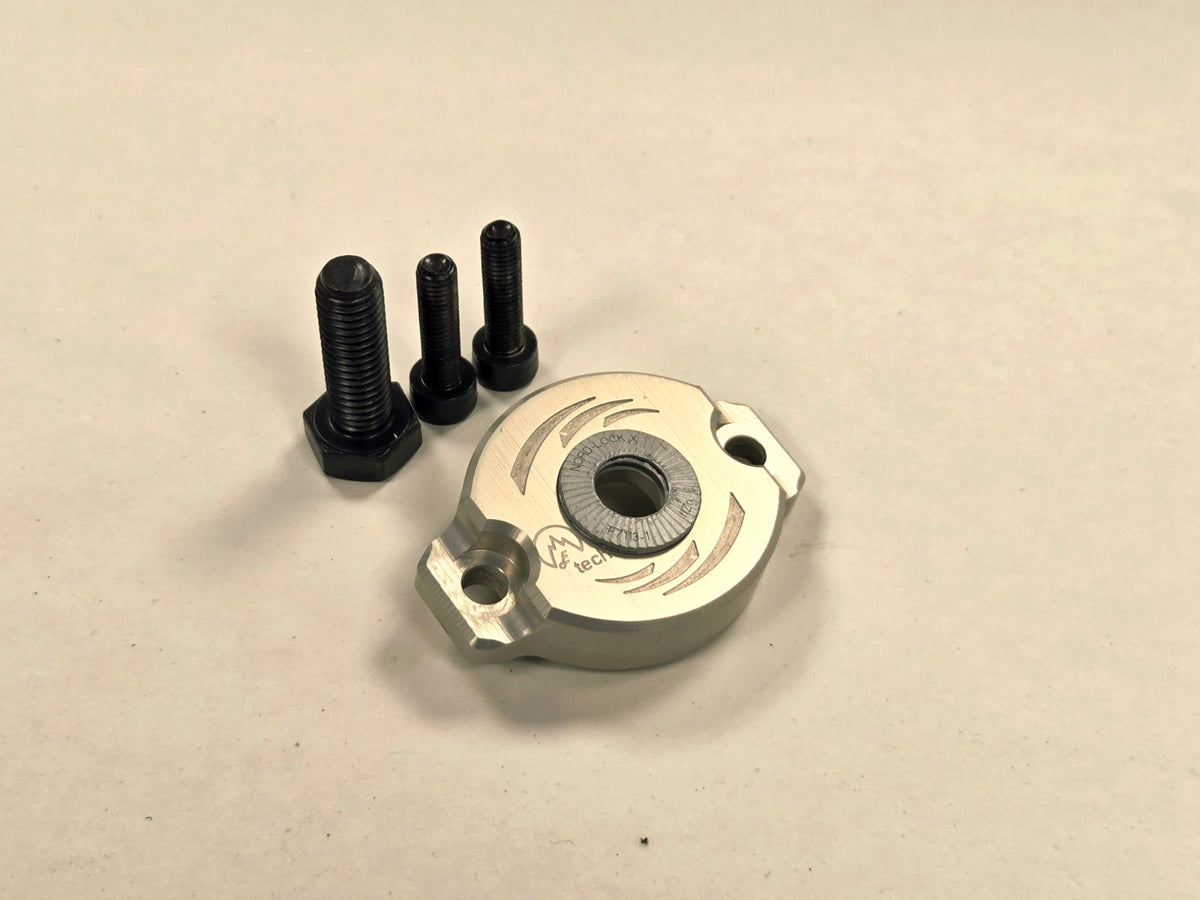

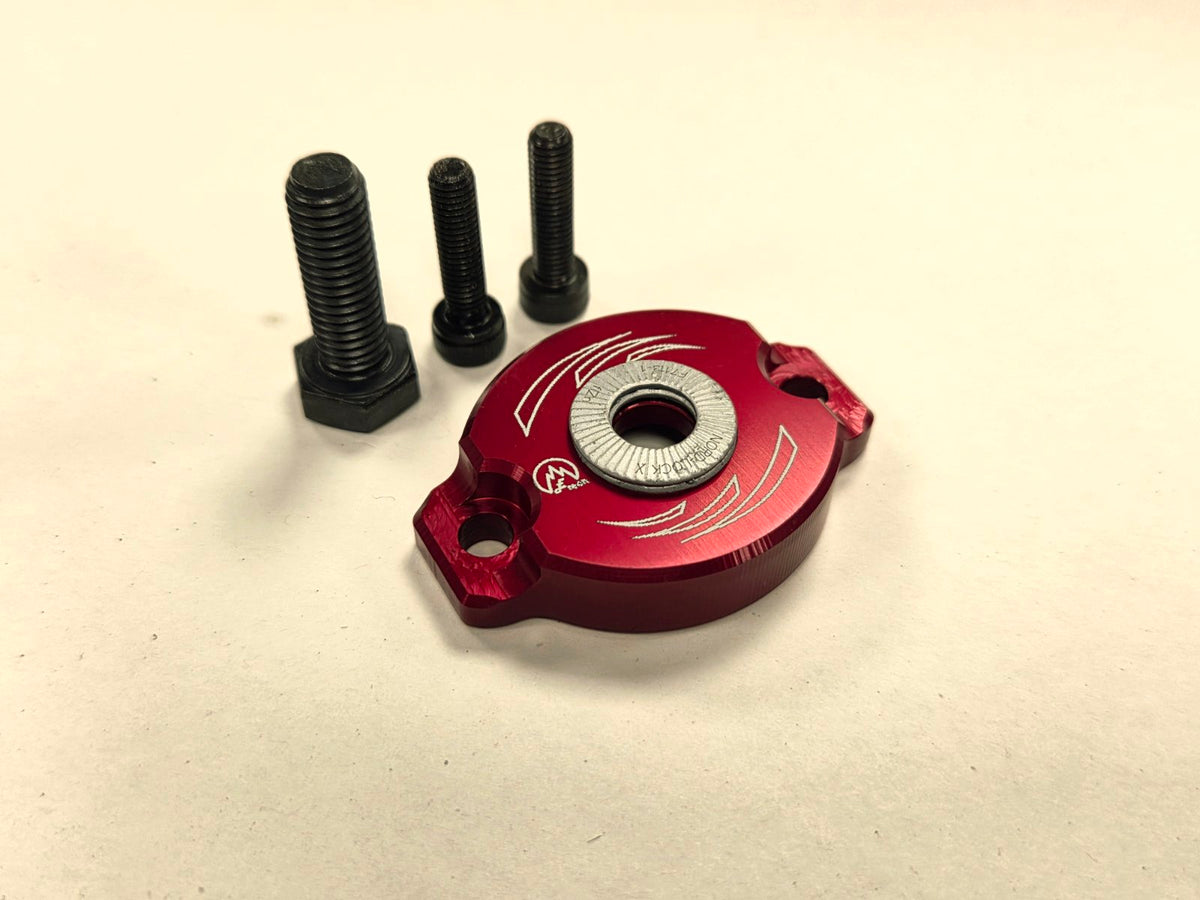

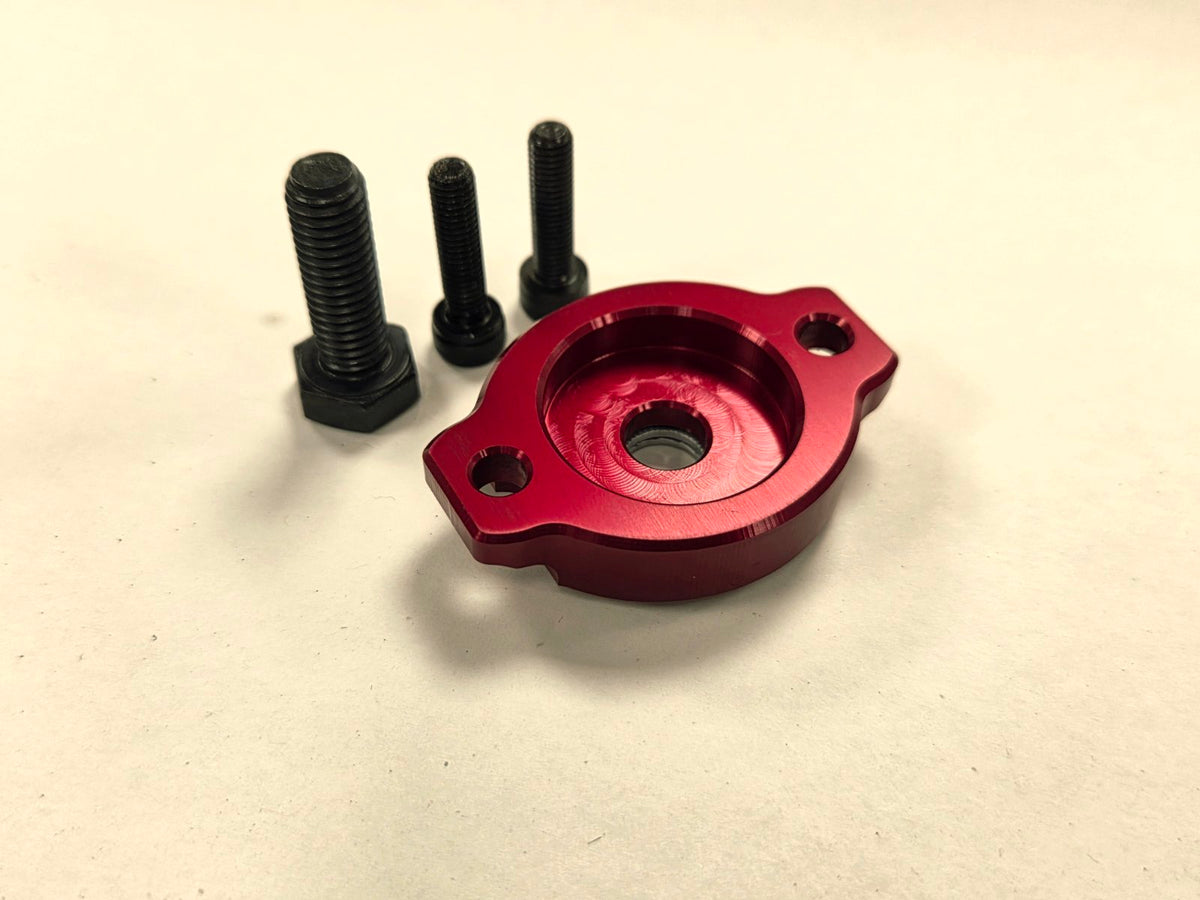

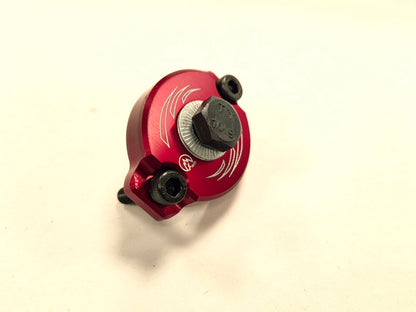

1x Holder for front sproket wheel, fastening element 2xM5 Grade12.9 and 1xM8  Grade10.5 + shim, all  bolts are high strength steel.

Material

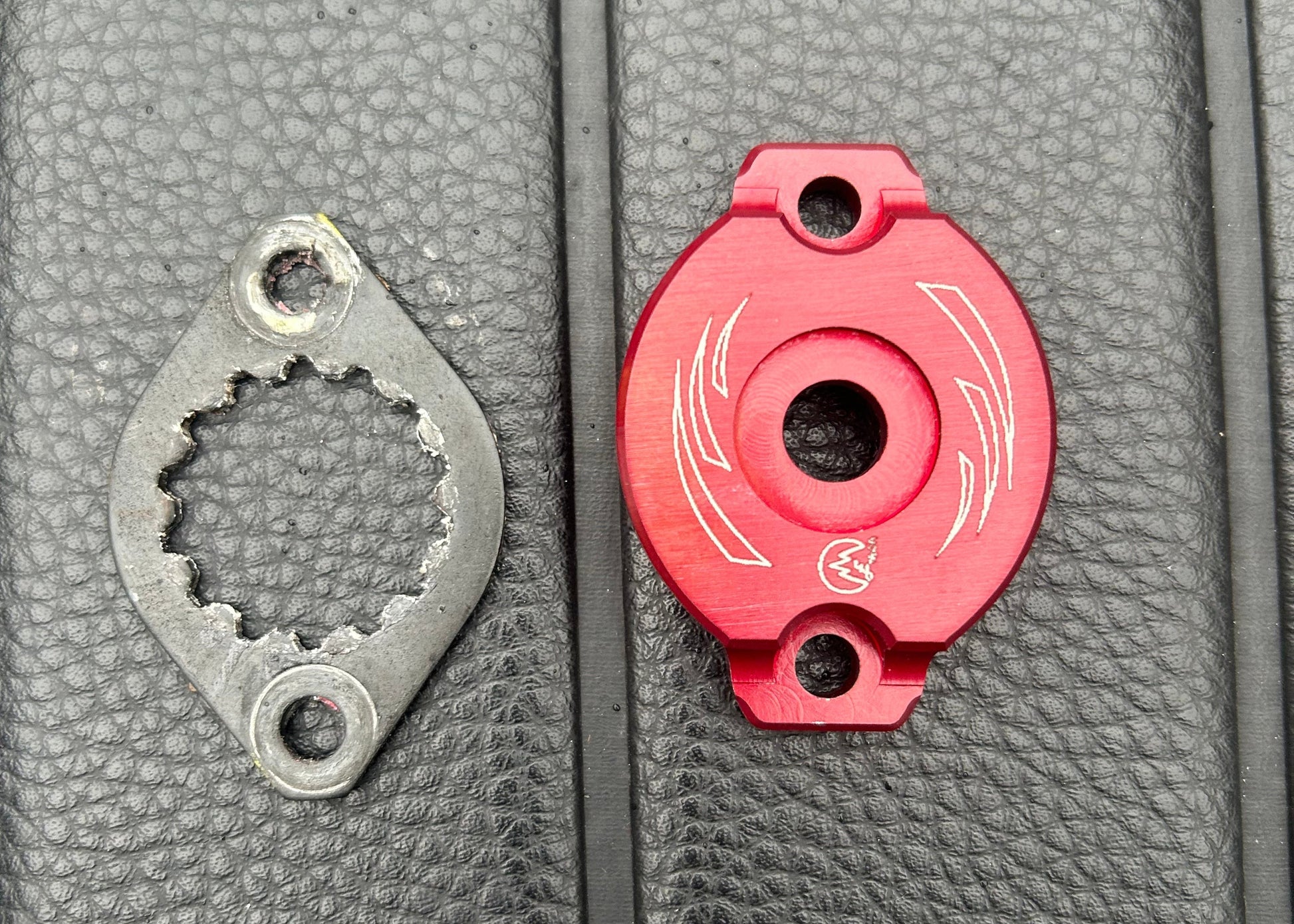

Sproket wheel holder is made of Aluminum alloy 6082 T6 is a medium strength alloy with excellent corrosion resistance. It has the highest strength of the 6000 series alloys. Applications of 6082 is typically used in: Highly stressed applications, Trusses, Bridges, Cranes, Transport applications, Ore skips.

Coating/Finish surface

The ready machined parts goes through electrochemical anodization process (25 microns Marine coat for marine applications i.e window frames within a few hundred meters of the sea or those in geothermal areas ) to improve the durability of the aluminium alloy , after which color is added for aesthetics.

Instalation

Fast and easy installation.

1.Remove the cover of the front sproket wheel.

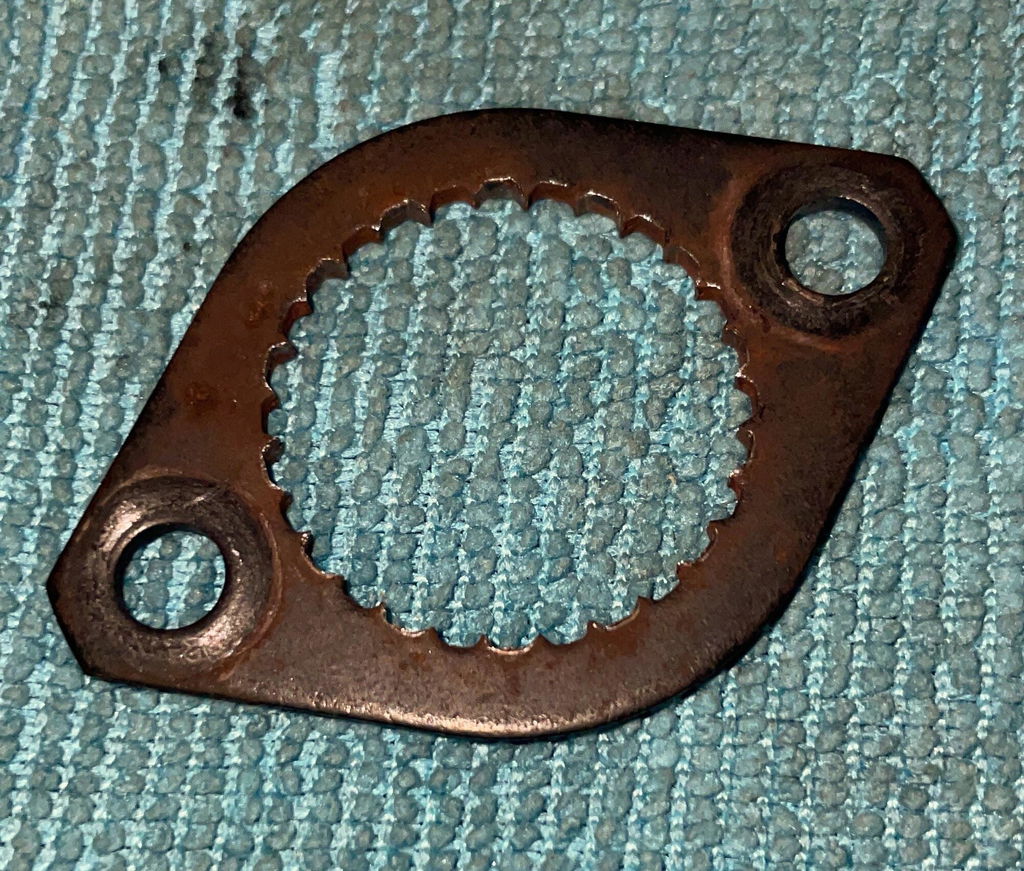

2.Disassemble the OEM sproket retaining plate.

3.Before adding the thread lock, wash thoroughly with spray degreaser. It could be engine degreaser, carburetor cleaner, etc. Wipe the threads dry with a rag.

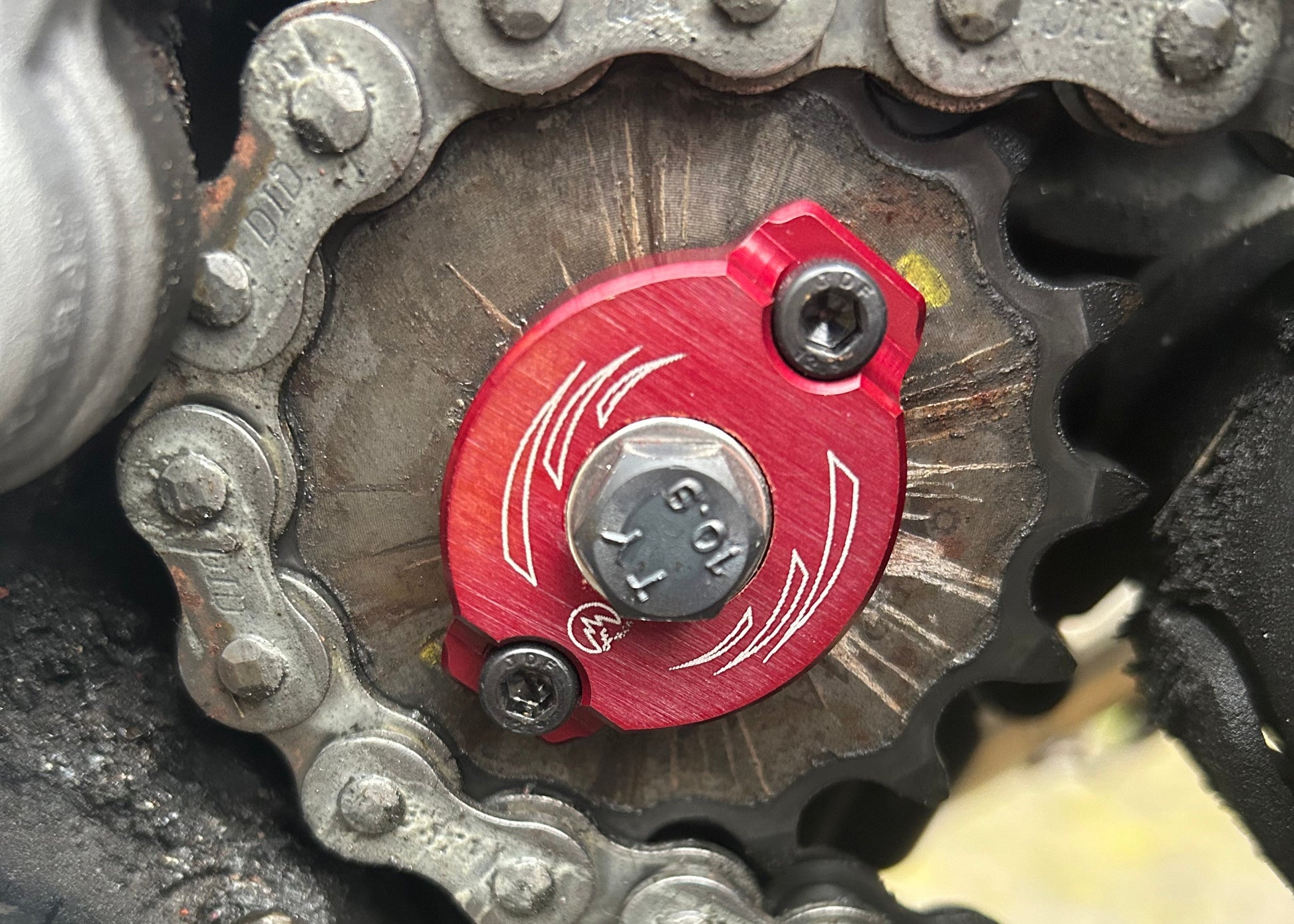

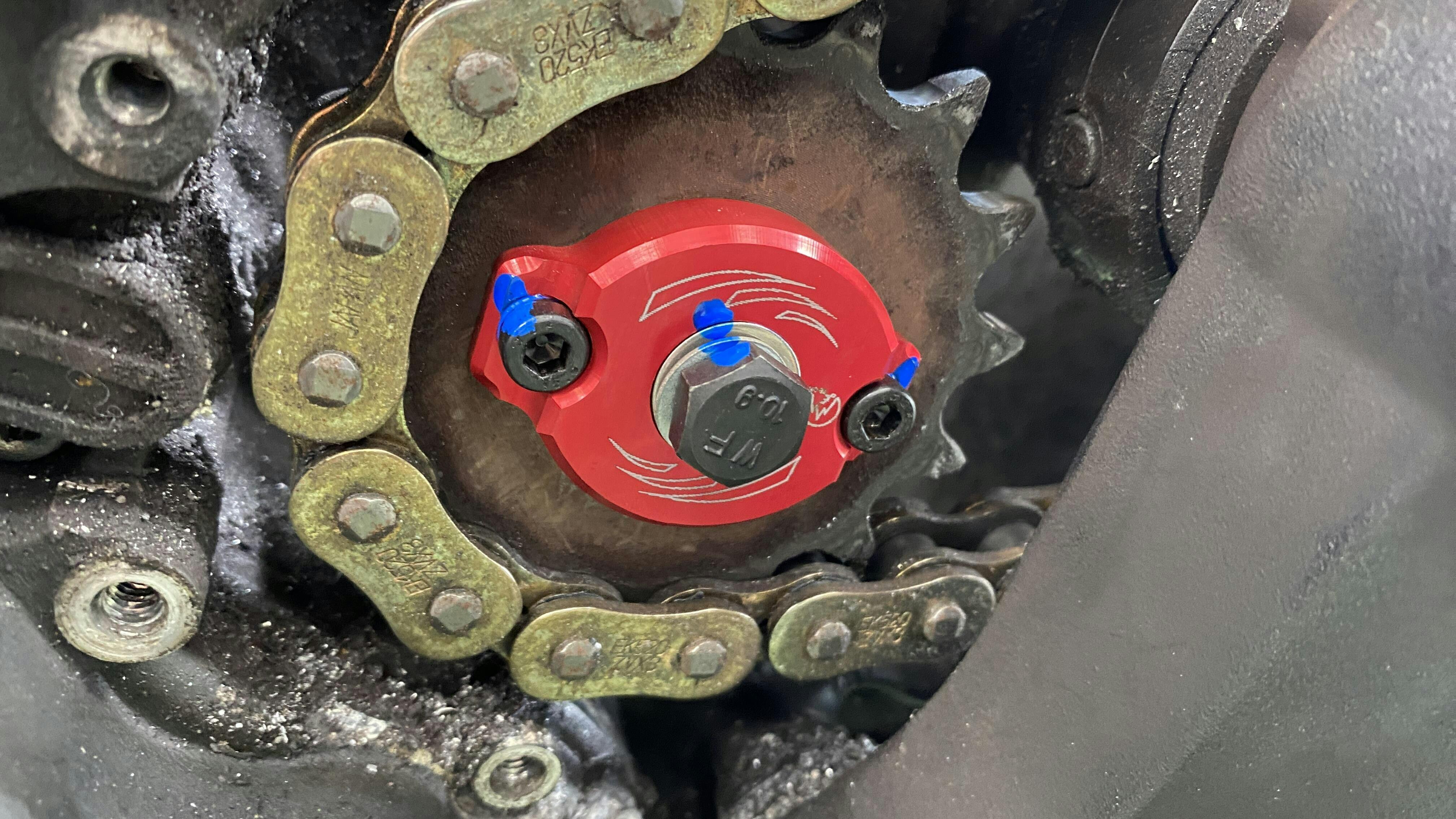

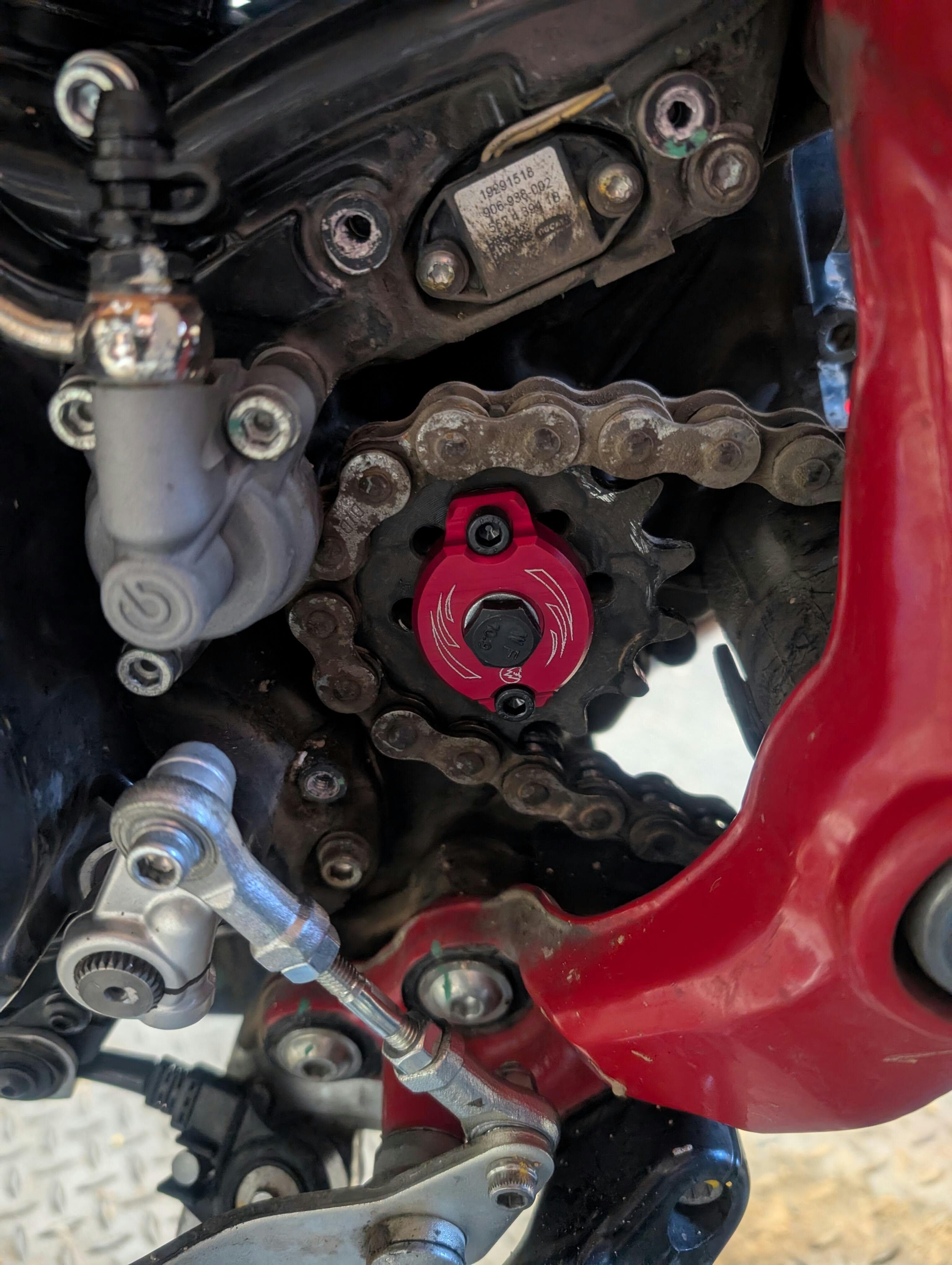

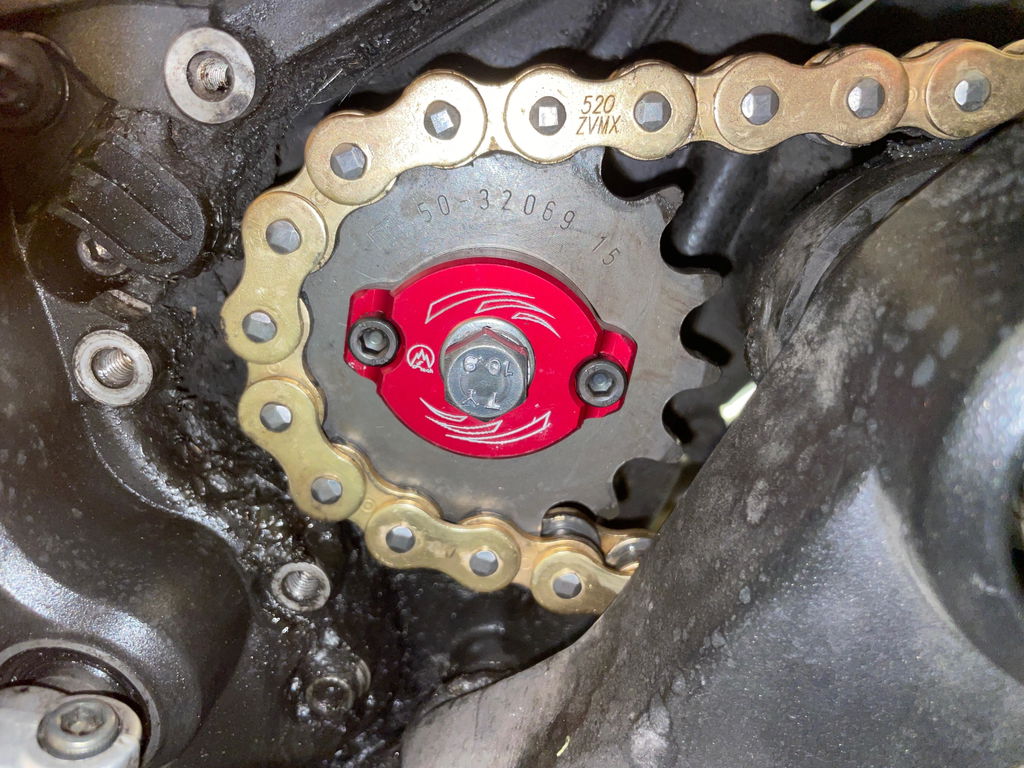

4.Apply thread locker. Keep the sprocket wheel in place and install the aluminium part by fixing the bolts by hand. After that tighten the bolts.

5.Suggested torque for tightening [Nm] M5 - 6 Nm ; M8 - 22/25 Nm.

Compatible models:

Use OEM part number 82610111A if your model is missing.

SCRAMBLER
2015 Scrambler Classic 800 / Full Throttle 800 / Icon 800 / Urban Enduro 800
2016 Scrambler Classic 800 / Flat Track Pro 800 / Full Throttle 800 / Icon 800 / Italia Independent 800 / Sixty2 400 / Urban Enduro 800
2017 Scrambler Sixty2 400 / Cafe Racer 800 / Classic 800 / Desert Sled 800 / Full Throttle 800 / Icon 800
2018 Scrambler Hashtag 400 / Sixty2 400 / Brazil Special Edition 800 / Cafe Racer 800 / Full Throttle 800 / Icon 800 / Mach 2.0 800 / Street Classic 800
2019 Scrambler Sixty2 400 / Cafe Racer 800 / Desert Sled 800 / Full Throttle 800 / Icon
2020 Scrambler Sixty2 400 / Cafe Racer 800 / Full Throttle 800 / Icon 800 / Icon Dark 800
2021 Scrambler Desert Sled 800 / Desert Sled Fasthouse 800 / Icon 800 / Icon Dark 800 / Nightshift 800
2022 Scrambler Desert Sled 800 / Desert Sled Fasthouse 800 / Icon 800 / Icon Dark 800 / Nightshift 800 / Urban Motard 800

MONSTER
1993 Monster 600 / 900
1994 Monster 600 / 900
1995 Monster 400 / 600 / 900
1996 Monster 400 / 600 / 750 / 900
1997 Monster 400 / 600 / 750 / 900
1998 Monster 600 / 600 Dark / 750 / 900 / 900 Cromo / 900 S
1999 Monster 600 / 600 City / 600 Dark / 600 Dark City / 750 / 750 Dark / 750 Dark City / 900 / 900 City / 900 Dark City
2000 Monster 400 / 600 / 750 / 900
2001 Monster 400 / 600 / 750 / 900 / S4
2002 Monster 400 / 620 IE / 750 IE / 900 IE / S4 / S4 Fogarty
2003 Monster 400 / 320 / 800 / S4R
2004 Monster 400 / 620 / 800 / S4R
2005 Monster 400 / 400 Dark / 620 / 620 Dark 2 Discs / Dark Single Disc / S2R / S2R Dark / S4R
2006 Monster 400 / 620 / 620 Dark / S2R / S2R Dark / S4R
2007 Monster 400 / 695 / S2R
2008 Monster 400 / 695 / 696
2009 Monster 696
2010 Monster 696 / 696 ABS
2011 Monster 696 / 696 ABS / 796 / 796 ABS
2012 Monster 659 ABS Learner Legal (Lams) / 659 Learner Legal (Lams) / 696 / 696 ABS / 795 / 796 / 796 ABS
2013 Monster 659 ABS Learner Legal (Lams) / 659 Learner Legal (Lams) / 696 / 696 ABS / ABS Anniversary / Anniversary / 795 / 795 ABS / 796 / 796 ABS / 796 ABS Anniversary / 796 Anniversary
2014 Monster 659 ABS Learner Legal (Lams) / 696 ABS / 795 / 795 ABS / 795 ABS Corse Stripe / 796 ABS
2015 Monster 795 / 795 ABS Corse Stripe / 795 ABS Red Stripe / 796 ABS S2R / 797 / 797+
2017 Monster 797 / 797+ / 797 / 797+
2019 Monster 659 Learner Legal (Lams) / 797 / 797+
2020 Monster 659 / 797
2021 Monster 659 / 797

HYPERMOTARD
2010 Hypermotard 796
2011 Hypermotard 796
2012 Hypermotard 796

Sport-Classic
2001 Sport-Classic MH900 E
2002 Sport-Classic MH900 E

Sport-Touring
1997 Sport-Touring ST2
1998 Sport-Touring ST2
1999 Sport-Touring ST2 / ST4
2000 Sport-Touring ST2 / ST4
2001 Sport-Touring ST2 / ST4 / ST4S
2002 Sport-Touring ST2 / ST4 / ST4S
2003 Sport-Touring ST2 / ST4 / ST4S / ST4S ABS
2004 Sport-Touring ST4S / ST4S ABS
2005 Sport-Touring ST4S / ST4S ABS

Superbike
1990 Superbike 907 IE
1991 Superbike 851 / 907 IE
1992 Superbike 851 / 907 IE
1993 Superbike 888 SP5 / 907 IE
1994 Superbike 888 / 916 / 916 Senna / 916 SP
1995 Superbike 748 / 888 / 916 / 916 Senna / 916 SP
1996 Superbike 748 / 916 / 916 Senna / SP
1997 Superbike 748 / 916 / 916 R / 916 Senna / 916 SPS
1998 Superbike 748 / 748 R Single Seat / 748 SPS / 916 R / 916 Senna / 916 Senna
1999 Superbike 748 / 748 R / 748 SPS / 996 / 996 R / 996 SPS / 996 SPS II
2000 Superbike 748 / 748 R Single Seat / 748 RS / 748 S / 996 / 996 RS / 996 SPS / 996 SPS III
2001 Superbike 748 / 748 E / 748 R / 748 RS / 748 S / 996 / 996 RS / 996 S
2002 Superbike 748 E / 748 R / 748 S
2003 Superbike 748
